Dorsey Trailers
All Dorsey Trailer main beams are fabricated from high tensile steel. Rear impact bumpers are US DOT and Transport Canada compliant. Paint is fully blasted, two-part primer with two-part black urethane topcoat. Standard features include Grote LED Sealed Lights, Grote Sealed Wiring Harness, 1-1/” Apitong Hardwood Floor, Double Coin Radial Tires. Dorsey Trailers have many options to choose from. Upper and lower deck custom lengths, custom widths, life axles, and multiple axle configurations are available. Available in aluminum, combo or all steel.
Dorsey Drop Deck Flatbed
| Capacity | 80,000 lbs GVWR (60,000 in 10′) |
| Material | Combo, Aluminum, or Steel Available |
| Length | 48′ or 53′ |
| Width | 102″ Overall |
| Suspension | Heavy Duty Air Ride, 25,000 lb. Capacity |
| Axles | Heavy Duty, 25,000 lb. Capacity |
| ABS Brakes | Bendix, 2S1M |
| Brakes | 16 1/2″ x 7″ Quick Change |

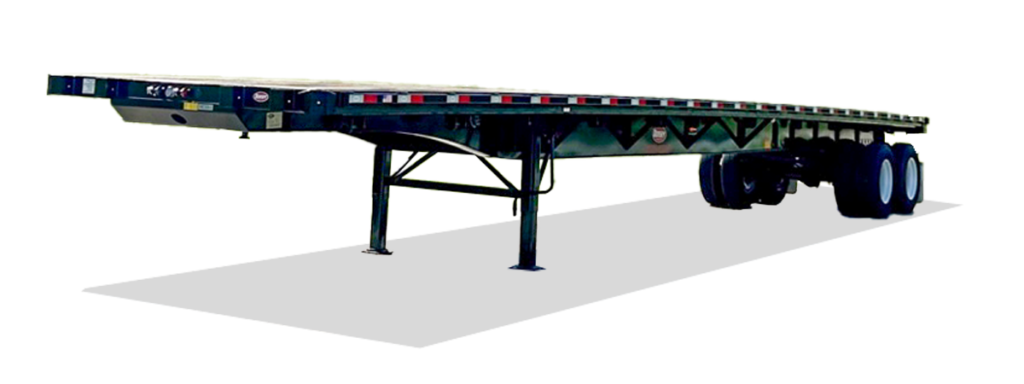

Dorsey Flatbed
| Capacity | 80,000 lbs GVWR (60,000 in 10′) |
| Material | Combo, Aluminum, or Steel Available |
| Length | 48′ or 53′ |
| Width | 102″ Overall |
| Suspension | Heavy Duty Air Ride, 25,000 lb. Capacity |
| Axles | Heavy Duty, 25,000 lb. Capacity |
| ABS Brakes | Bendix, 2S1M |
| Brakes | 16 1/2″ x 7″ Quick Change |

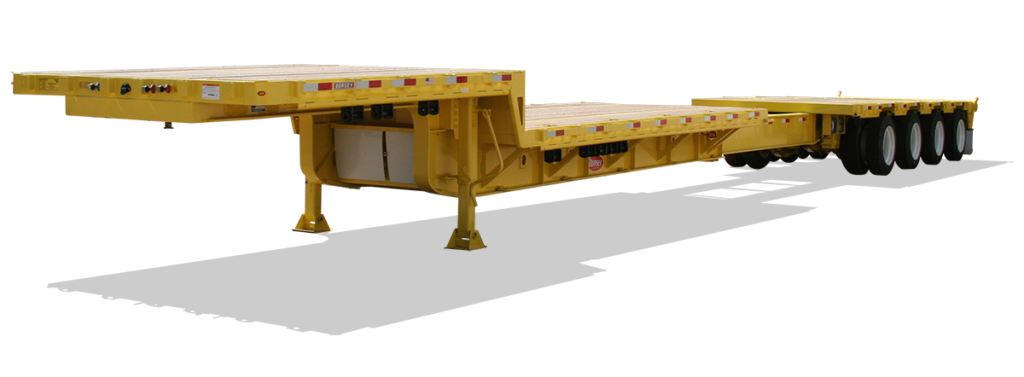

Dorsey Extendable Drop Deck
| Capacity | 80,000 lbs GVWR Evenly Distributed when Closed, 80,000 lbs Evenly Distributed over the Kingpin and Running Gear when Extended |
| Material | Combo, Aluminum, or Steel Available |
| Length | 48′ to 68′ and 53′ to 72′ |
| Width | 102″ Overall |
| Suspension | Heavy Duty Air Ride, 25,000 lb. Capacity |
| Axles | Heavy Duty, 25,000 lb. Capacity |
| ABS Brakes | Bendix, 2S1M |
| Brakes | 16 1/2″ x 7″ Quick Change |

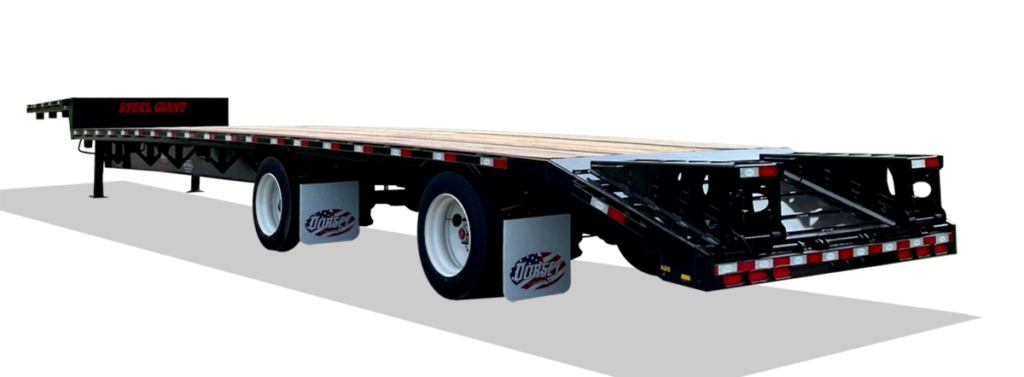

Dorsey STEEL BEAVERTAIL
| Capacity | 60,000 lbs. in 10’ |
| Material | Fabricated High Tensile Steel – TruStrength – Coil Package Available |
| Length | 53′ |
| Width | 102″ Overall |
| Suspension | Air Ride |
| Axles | Fixed Spread |
| Brakes | Drum |

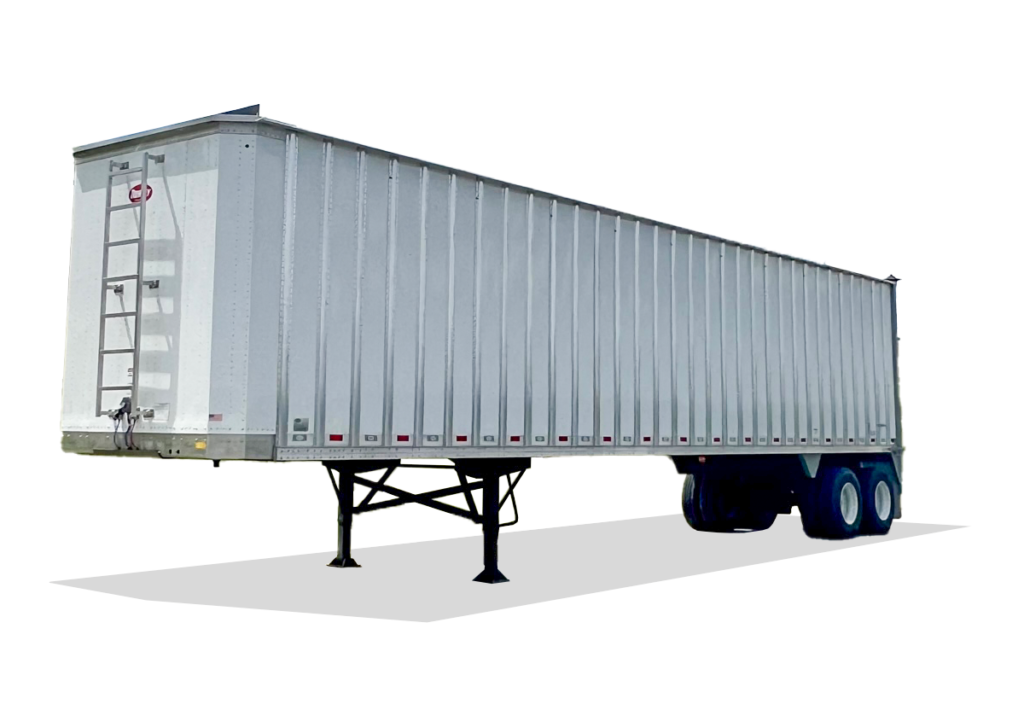

Dorsey Chip Van Open Top
| Capacity | 120 yards Cubic Capacity (45’x102″x13’6″) |
| Material | HD Aluminum Upper and Lower Rail |
| Length | 40’ – 53’ |
| Width | 96” and 102” |
| Suspension | Spring Ride |
| Axles | Tandem Axle |

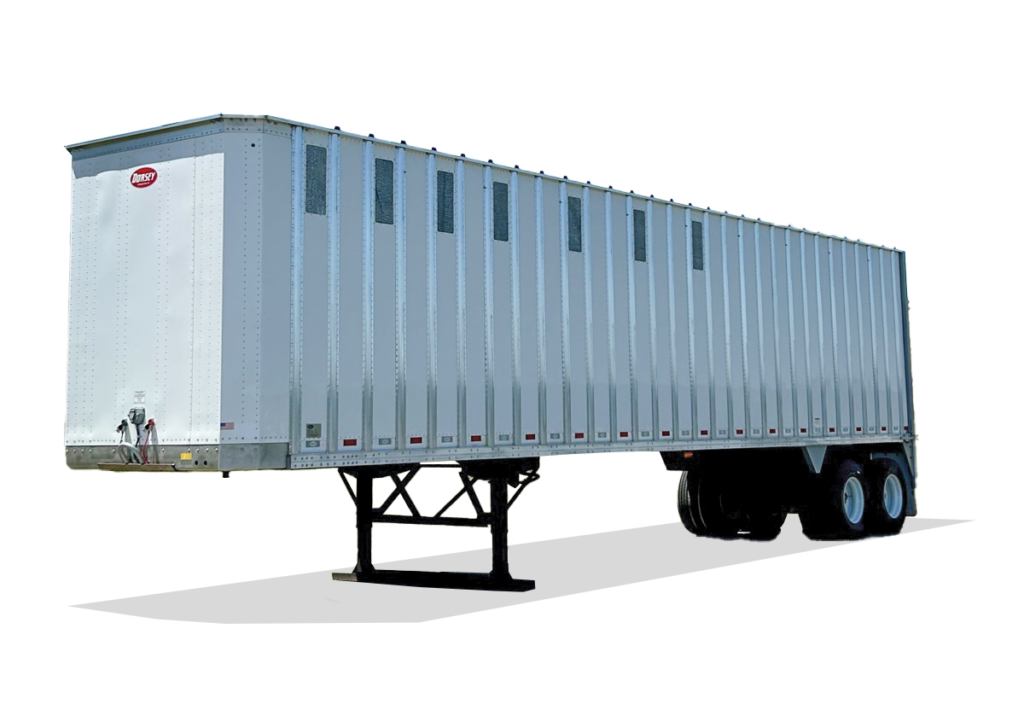

Dorsey Chip Van Closed Top
| Capacity | 104 yards Cubic Capacity (42’x102″x13’1″) |
| Material | HD Aluminum Upper and Lower Rail |
| Length | 40’ – 53’ |
| Width | 96” and 102” |
| Suspension | Spring Ride |
| Axles | Tandem Axle |

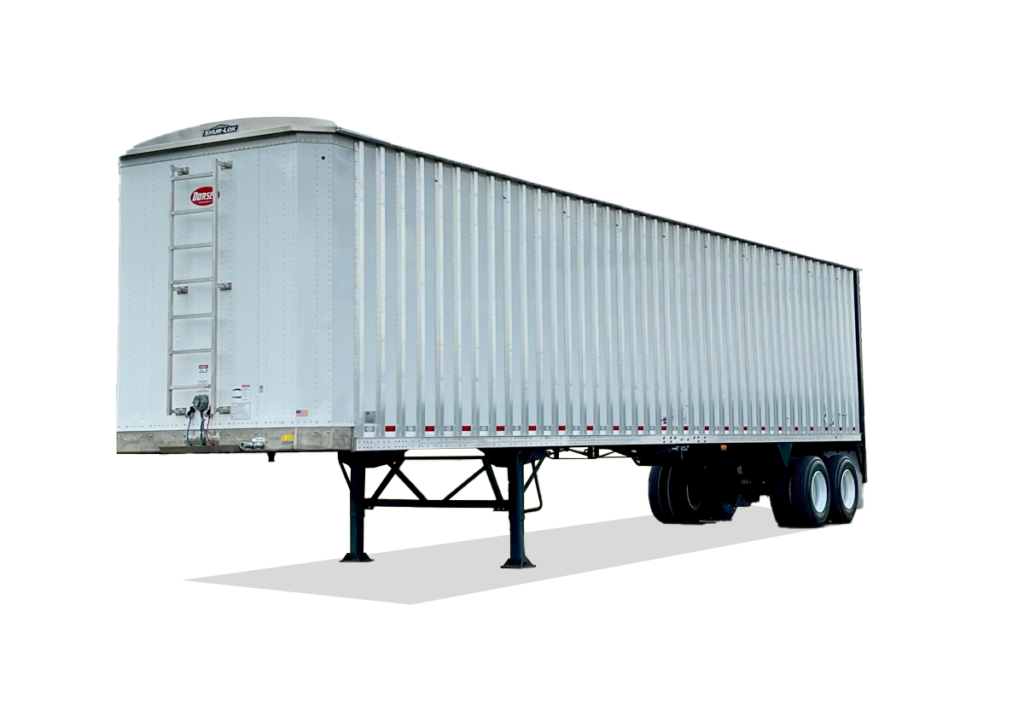

Dorsey Chip Van Walking Floor
| Capacity | 120 yards Cubic Capacity (45’x102″x13’6″) |
| Material | HD Aluminum Upper and Lower Rail |
| Length | 40’ – 53’ |
| Width | 96” and 102” |
| Suspension | Spring Ride |
| Axles | Tandem Axle |
