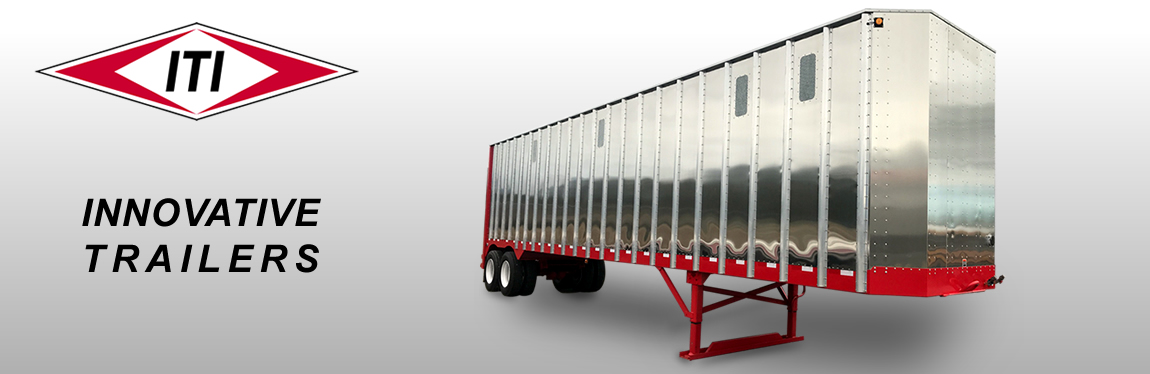

ITI CHIP TRAILERS

You will maximize your profit potential with Innovative Trailers chip trailers. The Foundation is a cutting edge design that maximizes structural strength while minimizing trailer weight. Utilizing premium quality components and materials, ITI’s veteran work force builds every chip trailer to deliver year upon year of dependable service with little profit-robbing time spent in the shop. The result is a maximum return on your investment. And if you ever decide to replace your ITI, you will be delighted at how well it has retained its value.

DCS Chip | Inwoods Closed Top Chip | SDS Open Top Chip

Download the ITI DCS Chip Trailer Brochure Learn more at www.ititrailers.com

DCS Chip Trailer

CAPACITY

3,834 cubic feet (142 cubic yards)(19.1 units), water level.

DIMENSIONS

48′ Length, 102″ Width, 13′ 6″ Height (based on 50″ Fifth Wheel height), 36″ Rear Axle location, 37″ King Pin setting, 42′ 1″ King Pin to Rear Axle, 35′ Landing Gear to Dump Blade, and 18″ Ground Clearance.

WEIGHT

Approximately 11,188 lbs. +/- 3%.

SIDE WALLS

.063 stressed aluminum mill finished skins, with exterior 6061-T6 aluminum aero posts on 21- Â½” center with Â¼” diameter sidewall rivets on 4 1/2″ centers. Heavy-duty side posts in drop area.

TOP

Open Top, single center tie design with front and rear diagonal bracing with aluminum top rail gussets.

FRONT

45-degree front corners with interior front posts.

FLOOR

.063 corrugated aluminum “V-Groove”.

REAR DOOR

Side hinge, skinned with expandable metal.

KING PIN

Standard SAE heat-treated, 37″ setting.

Inwoods Closed Top Chip Trailer

CAPACITY

2,738 cubic feet (101.4 cubic yards), water level.

DIMENSIONS

43″ Length, 8″ Width, 13’6″ Height (based on 51″ Fifth Wheel height), 28″ Rear Axle location, 37″ King Pin setting, 36’9″ King Pin to Rear Axle, 32′ 2 1/2″ Landing Gear to Bumper Blade

WEIGHT

Approximately 10,625 lbs. +/- 3%.

SIDE WALLS

.063 stressed aluminum mill finished skins, with exterior 6061-T6 aluminum aeropost on 21 1/2″ center, Skins lapped inwoods style and sidewall rivets on 4 1/2″ centers. Six (6) inwoods vents, three (3) per side

TOP

Closed top, inwoods design with 48″ wide, and 24-gauge stainless steel chipdeflector.

FRONT

90-degree front corners with interior front posts. Interior lined with .063 aluminum.

FLOOR

.063 corrugated aluminum with wood brake strips.

REAR DOOR

Aluminum top hinge, 2/3 door for inwoods operation, skinned with pre-paint black skins.

KING PIN

Standard SAE heat-treated, 37″ setting, 51″ height, 1/2″ king pin plate and lifting eye

SDS Open Top Chip Trailer

CAPACITY

2,750 cubic feet (101.8 cubic yards) (13.7 units), water level.

DIMENSIONS

42′ Length, 96″ Width, 13’6″ Height (based on 50″ Fifth Wheel height), 36″ Rear Axle location, 37″ King Pin setting, 39’1″ King Pin to Rear Axle, 34′ 2 1/2″ Landing Gear to Dump Blade.

WEIGHT

Approximately 9,650 lbs. +/- 3%

SIDE WALLS

.063 stressed aluminum mill finished skins, with exterior 6061-T6 aluminum aeropost on 21 1/2″ centers and 1/4″ sidewall rivets on 4 1/2″ centers.

TOP

Open top, single tie design with front and rear diagonal bracing and aluminum top rail gussets.

FRONT

45-degree front with interior front posts.

FLOOR

.063″ corrugated aluminum with wood brake strips.

REAR DOOR

Aluminum top hinge door skinned with galvanized expanded metal.

KING PIN

Standard SAE heat-treated, 37″ setting.
