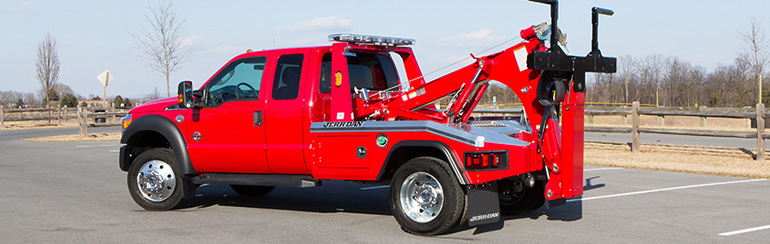

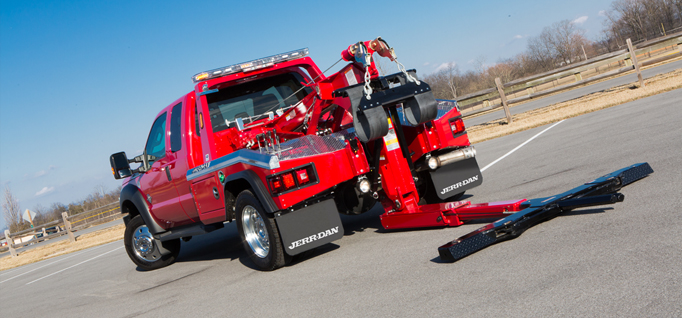

JERR-DAN MPL-40 STANDARD WRECKER

No truck out-works, out-smarts or out-tows the MPL-40 wrecker from Jerr-Dan. With an 8-ton recovery boom and choice of three wheel-grid packages, the MPL-40 has the versatility to handle whatever job you put in its path. And with safety innovations like the patented LOCKLINK®, you’ll be able to tackle more tows in every shift. Best of all, it’s a Jerr-Dan so you know you can rely on it day in, and day out.

SPECIFICATIONS

UNDERLIFT CAPACITY:  4,000 lbs. fully extended
BOOM (PER SAEJ2512):  16,000 lbs. retracted

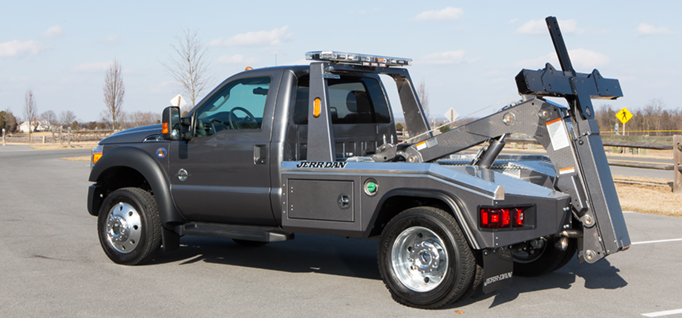

JERR-DAN MPL-NG STANDARD WRECKER

Jerr-Dan’s MPL-NG series offers smart design and unrelenting performance thanks to its modular aluminum body and our patented Underlift Level Stop Assist System, which prevents wasting precious set-up time. Jerr-Dan’s patented LOCKLINK® mechanism locks wheel-retaining arms in the full tire engaged position. The Negative Tilt Feature on the wheel lift is perfect for vehicles in parking ramps and the 4-1/2″ high hydraulic crossbar, with 4,000 lb. capacity, assures clearance for even the lowest profile vehicles. The body has a clear deck top and offers more space for storage, while the headboard provides great visibility. The hydraulic valve on the MPL-NG is positioned for easier servicing to get you on the road and back in business faster.

SPECIFICATIONS

UNDERLIFT CAPACITY:  4,000 lbs. fully extended
WINCH CAPACITY:  8,000 lbs. – 3/8″ x 75′ wire rope

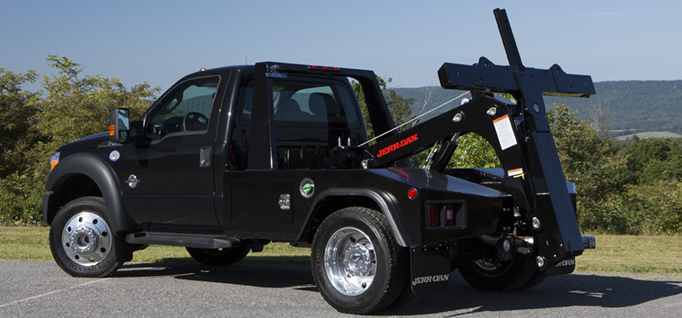

JERR-DAN MPL-NGS STANDARD WRECKER

When value and performance matter, look no further than the steel body MPL-NGS by Jerr-Dan. Our Negative Tilt Feature on the wheel lift is perfect for repossessing vehicles in parking ramps, and its 4-1/2″ high hydraulic crossbar, with 4,000 lb. capacity, assures clearance for even the lowest profile vehicles. Jerr-Dan’s patented Underlift Level Stop Assist System gets you set up quickly so you can get in and get out fast, while our patented LOCKLINK® mechanism locks wheel-retaining arms in the full tire engaged position. The body has a clear deck top and offers more space for storage, and the headboard provides great visibility. You’ll find the hydraulic valve on the MPL-NGS is positioned for easier servicing, to get you on to your next job quickly.

SPECIFICATIONS

UNDERLIFT CAPACITY:  4,000 lbs. fully extended
WINCH CAPACITY:  8,000 lbs. – 3/8″ x 76′ wire rope

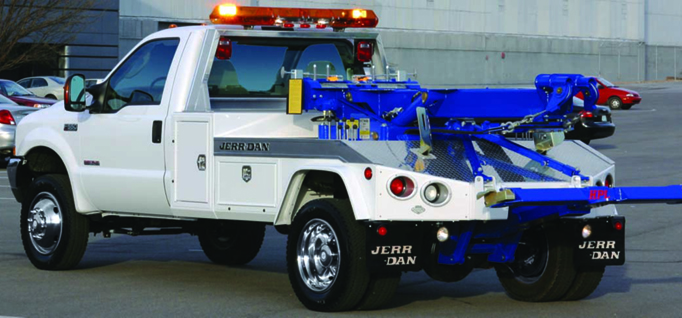

JERR-DAN HPL-35 STANDARD WRECKER

Jerr-Dan’s tough and rugged HPL-35 standard-duty independent wrecker will perform beyond your expectations, thanks to its strength and unmatched mobility. Choose from modular aluminum or fully welded steel bodies. The underlift has 3,500 lb. capacity at L-arms and T-37 grids are available. Recovery booms have 8,000 – 24,000 lb. ratings with single and dual winch options available.

SPECIFICATIONS

UNDERLIFT CAPACITY:  3,500 lbs.
RECOVERY BOOMS:  8,000 lbs. – 24,000 lbs.

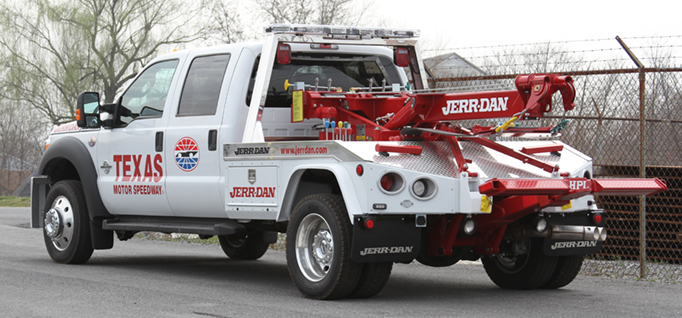

JERR-DAN HPL-60 STANDARD WRECKER

Our HPL-60 series standard-duty independent wrecker is the perfect vehicle to tackle even some of the trickiest jobs. Engineered for strength and unmatched mobility, you can choose from either a modular aluminum or fully welded steel body. The underlift has 5,000 lb. capacity at L-arms and T-37 grids are available. Recovery booms range from 8,000 – 24,000 lb. ratings with single and dual winch options available.

SPECIFICATIONS

UNDERLIFT CAPACITY:  5,000 lbs.
RECOVERY BOOMS:  8,000 lbs. – 24,000 lbs.

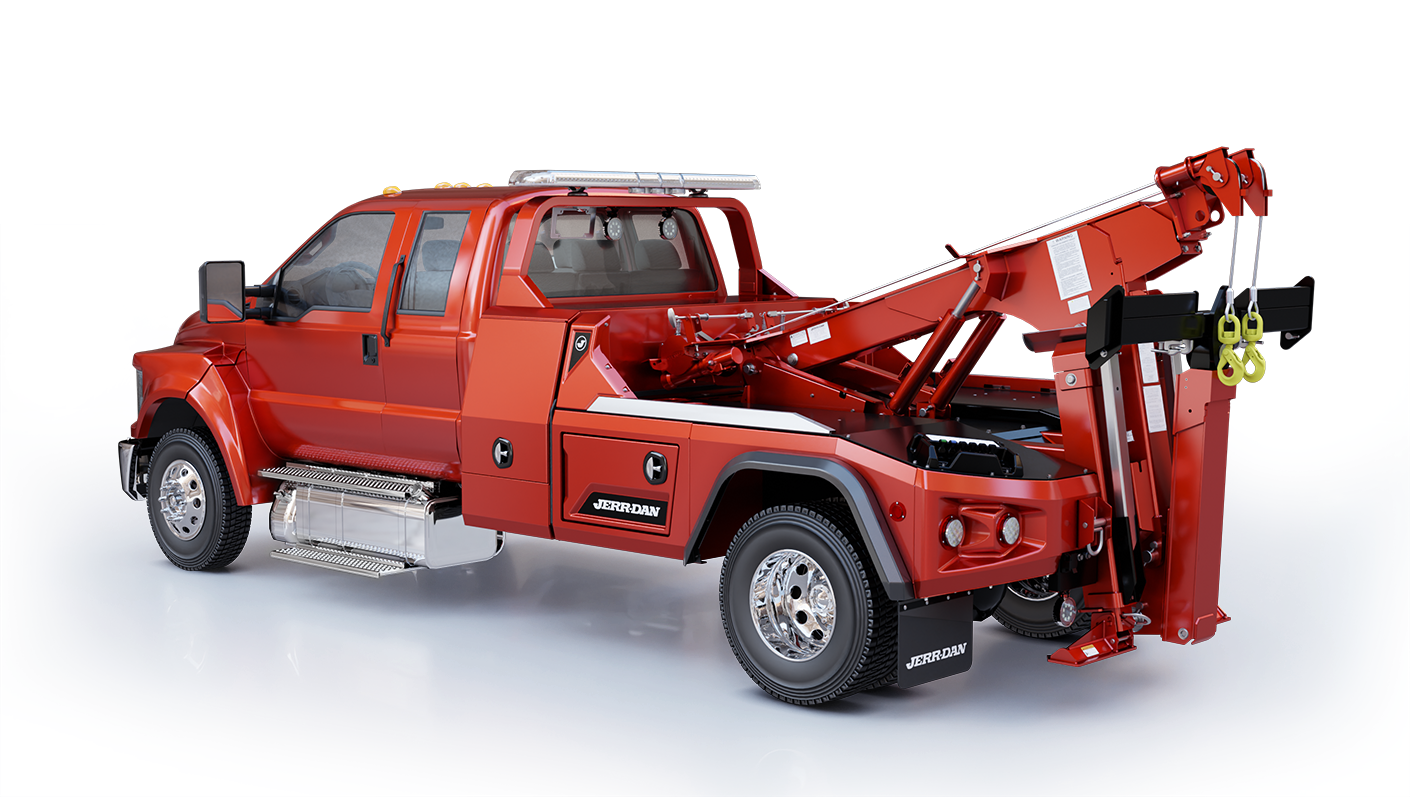

JERR-DAN MPL-60 STANDARD WRECKER

The MPL-60 offers a 12 ton integrated recovery boom, 6,000 lb. underlift and a modular aluminum body that is maximized for available storage and deck space.

SPECIFICATIONS

UNDERLIFT CAPACITY:  6,000 lbs.
RECOVERY BOOMS:  24,000 lbs.

JERR-DAN HEAVY-DUTY WRECKERS

Your job requires superpowers, and these trucks have them all. High-tensile steel fabricated booms. Industry-leading reach with positive and negative tilt. Engineered and designed to give you maximum power, stability, and versatility to fit a wide variety of applications.

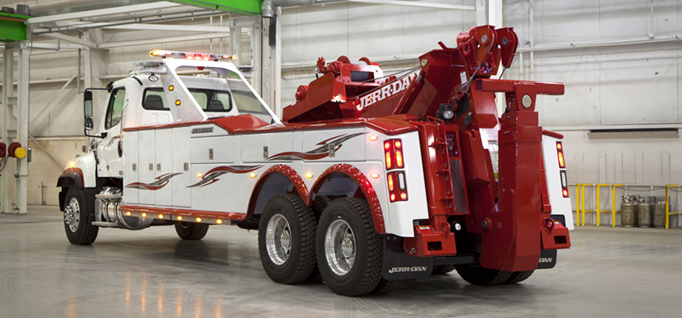

JERR-DAN 25 TON INTEGRATED WRECKER

Stay ahead of the competition with Jerr-Dan’s 25 Ton Integrated Wrecker. Available in single, tandem, or tri-axle body configurations, it boasts a 50,000 lb. two-stage wrecker boom with dual 25,000 lb. planetary winches and 200’ of 5/8” diameter cable per winch and a 28,000 lb. underlift. The aluminum and composite body is corrosion-resistant and mounted to the subframe using rubber isolators to reduce vibration and stress in the body. The molded composite panels can be individually replaced in the field, and the body is color matched to the chassis with a class-A paint finish. Add Jerr-Dan’s optional 14,000 lb. heavy-duty tire lift to maximize its power.

SPECIFICATIONS

WRECKER BOOM – TWO STAGE:  50,000 lbs. Retracted
WINCH BOOM:  25,000 lb. Planetary

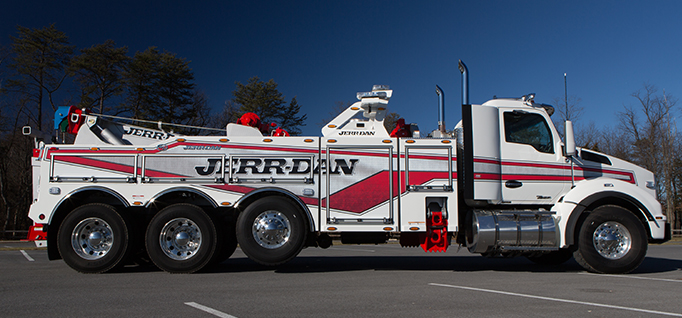

JERR-DAN 35 TON JFB INTEGRATED WRECKER

With innovative tool storage and unmatched performance, the 35 Ton Integrated Wrecker is “best-in-class” in towing and recovery. Fabricated boom and underlift equipment provide the high strength demanded by today’s heavy duty tasks. The 5-inch steel crossbar center pin coupled with the steel bushing are unparalleled in service life. Interchangeable tool compartments and optimized rigging management provide for an extremely efficient and entirely customizable interior. Why? So you can organize it your way.

SPECIFICATIONS

MAX LIFTING CAPACITY:  30º Boom Angle, 70,000 lbs. Retracted
MAX BOOM EXTENSION:  134” (11’ 2”)

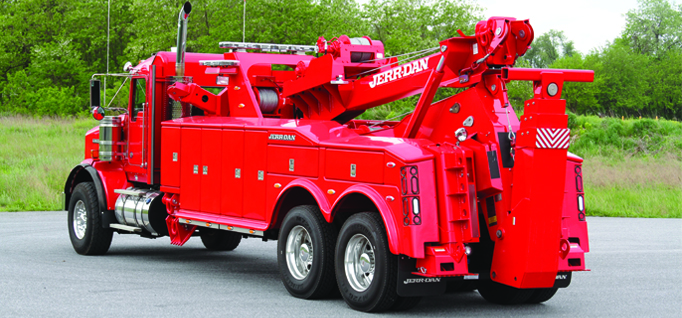

JERR-DAN 35 TON INDEPENDENT WRECKER

We know heavy duty recovery work is serious business. That’s why we designed our 35 Ton Independent wrecker to get the job done right the first time. This wrecker is the perfect choice for recoveries that require heavy duty power, extra capacity and extreme versatility. The three-stage underlift provides maximum flexibility for any towing situation and you choose from tandem or tri-axle body configurations. The aluminum and composite body is corrosion-resistant and mounted to the subframe using rubber isolators to reduce vibration and stress in the body. The molded composite panels can be individually replaced in the field and the body is color matched to the chassis with a class-A paint finish. The 70,000 lb. two-stage wrecker boom has dual 35,000 lb. planetary winches available and 200′ of 5/8” diameter cable per winch. You can choose from a 35,000 lb. 123” reach underlift or 30,000 lb. 144” reach coach underlift. Add Jerr-Dan’s optional 14,000 lb. heavy duty tire lift to maximize its power.

SPECIFICATIONS

WRECKER BOOM – TWO STAGE:  30º Boom Angle, 77,000 lbs. Retracted
WINCH WRECKER BOOM:  25,000 lb., 35,000 lb. Planetary

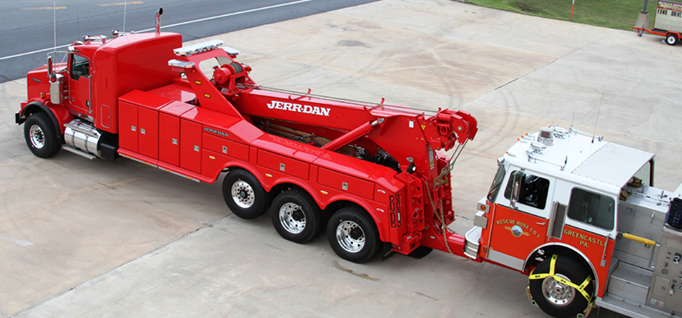

JERR-DAN 50 TON INTEGRATED WRECKER

Looking for power and flexibility? Then you need Jerr-Dan’s 50 Ton Integrated wrecker which can be custom designed to meet your exact specifications. The aluminum and composite body is corrosion-resistant and mounted to the subframe using rubber isolators to reduce vibration and stress in the body. The molded composite panels can be individually replaced in the field, and the body is color matched to the chassis with a class-A paint finish. Choose from tandem or tri-axle body configurations, as well as a 100,000 lb. two- or three-stage wrecker booms with dual 50,000 lb. planetary winches and 250’ of 3/4” diameter cable per winch. Underlift reaches are available from 141” to 181” with positive and negative tilt capability. Available options include proportional remote controls, a 25,000 lb. super heavy-duty tire lift, multiplexed switch panels and more.

SPECIFICATIONS

WRECKER BOOM – TWO STAGE:  100,000 lbs. Retracted
WINCH BOOM:  50,000 lb. Planetary

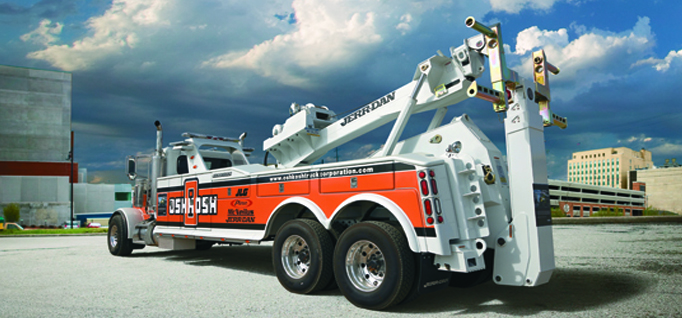

JERR-DAN 50 TON INDEPENDENT WRECKER

When you know just what you need to get the job done, look no further than Jerr-Dan’s 50 Ton Independent wrecker which gives you the ability to custom design a wrecker to meet your exact specifications. The aluminum and composite body is corrosion-resistant and mounted to the subframe using rubber isolators to reduce vibration and stress in the body. The molded composite panels can be individually replaced in the field, and the body is color matched to the chassis with a class-A paint finish. Choose from tandem or tri-axle body configurations, as well as a 100,000 lb. two- or three-stage wrecker boom with dual 50,000 lb. planetary winches and 250’ of 3/4” diameter cable per winch. Underlift reaches are available from 141” to 181” with positive and negative tilt capability. Available options include proportional remote controls, a 25,000 lb. super heavy duty tire lift, a 35,000 lb. drag winch and more.

SPECIFICATIONS

WRECKER BOOM – 3 STAGE:  100,000 lbs. Retracted
WINCH BOOM:  50,000 lb. Planetary

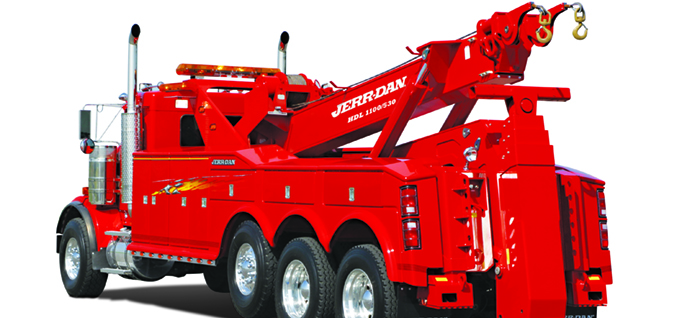

JERR-DAN 60 TON INDEPENDENT WRECKER

When you need the most power you can get, you need Jerr-Dan’s 60 ton independent wrecker. The aluminum and composite body is corrosion-resistant and mounted to the subframe using rubber isolators to reduce vibration and stress in the body. The molded composite panels can be individually replaced in the field, and the body is color matched to the chassis with a class-A paint finish. Choose from tandem or tri-axle body configurations, as well as a 120,000 lb. two-stage wrecker boom with dual 50,000 lb. planetary winches and 250’ of 3/4” diameter cable per winch. Underlift reaches are available from 141” to 181” with positive and negative tilt capability. Available options include proportional remote controls, a 56,500 lb. super heavy duty under lift, a 35,000 lb. deck winch and more.

SPECIFICATIONS

WRECKER BOOM – 2 STAGE:  120,000 lbs. Retracted
WINCH BOOM:  50,000 lb. Planetary
