Landoll Traveling Axle Trailers
Landoll traveling axle trailers feature low angle ground loading with one-man operation and capacities of 25-55 tons.
Traveling Axle Model 425C
Medium-Duty with Full Features
The Model 425C is a medium-duty, tandem axle, 25 ton capacity trailer available in lengths of 41′ and 45′. The 425C is ideal for narrow, tight, winding road and inner-city applications with a lighter hauling capacity. The 425C may be a medium-duty trailer however, it still boasts all the features of the 400 series.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 425C-41 | 25 Ton | 16,800 lbs. +/- 3% | 102 | 2 | (8) 235/75R 17.5 LRH |
| 425C-45 | 25 Ton | 17,200 lbs. +/- 3% | 102 | 2 | (8) 235/75R 17.5 LRH |
Traveling Axle Model 440A
The Next Generation Landoll has Arrived!
The Landoll 440A is a tandem axle trailer with a capacity of up to 40 tons. It is available in 41′, 48′, 53′, and California legal 50′ lengths. Handle tough equipment including super low clearance pavers with an easy one-man operation.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 440A-41 | 40 Ton | 16,820 lbs. (+/- 3%) | 102″ | 2 | (8) 235/75R 17.5 Double Coin |
| 440A-48 | 40 Ton | 18,575 lbs. (+/- 3%) | 102″ | 2 | (8) 235/75R 17.5 Double Coin |
| 440A-50CA | 40 Ton | 19,355 lbs. (+/- 3%) | 102″ | 2 | (8) 235/75R 17.5 Double Coin |
| 440A-53 | 40 Ton | 19,610 lbs. (+/- 3%) | 102″ | 2 | (8) 235/75R 17.5 Double Coin |

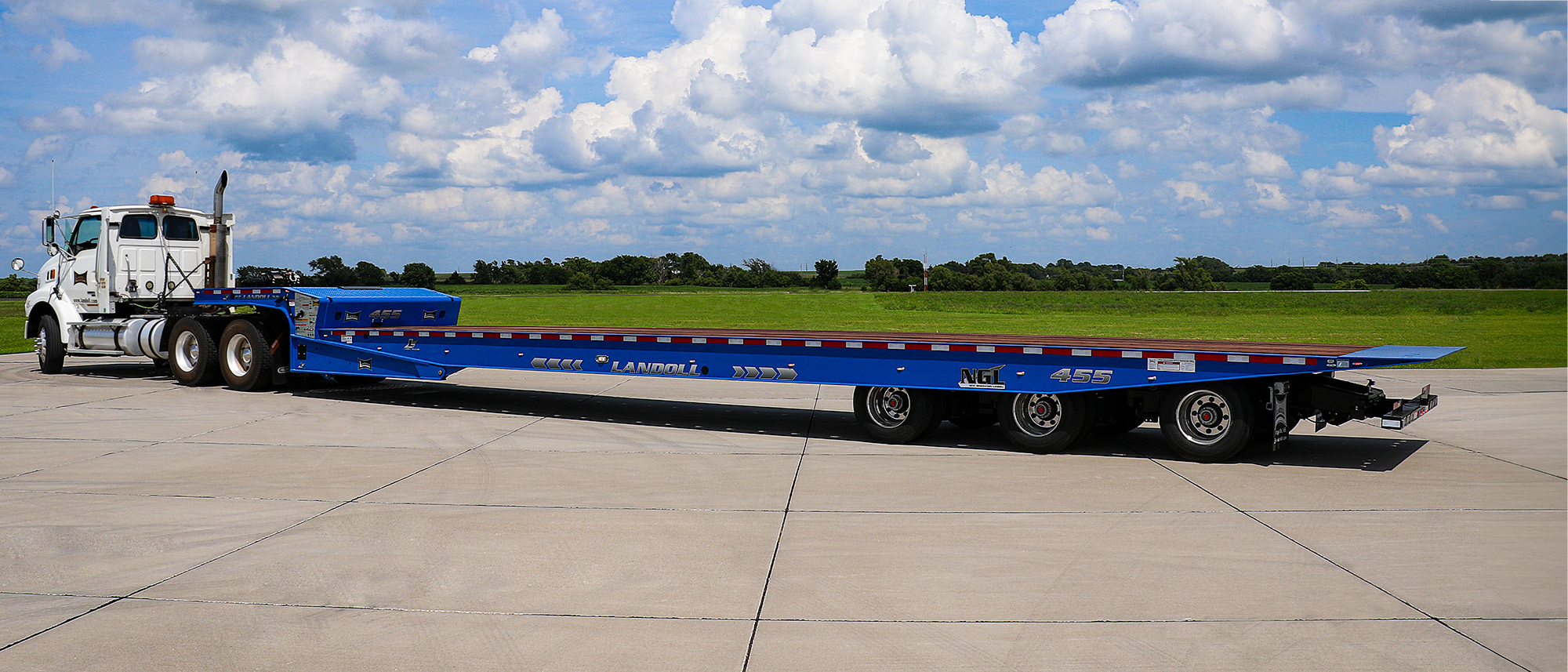

Traveling Axle Model 455A
Stability with Top Performance and Maneuverability
The Model 455A Traveling Axle trailer will handle heavy loads with triple axles and 55 ton capacity. Lengths available are 48’, 50’, 53’ and California legal 50’. To maximize the load capacity, the 455 is standard with a 60†axle spread.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 455A-48 | 55 Ton | 21,980 lbs. (+/- 3%) | 102″ | 3 | (12) 235/75R 17.5 Double Coin |
| 455A-50 | 55 Ton | 23,010 lbs. (+/- 3%) | 102″ | 3 | (12) 235/75R 17.5 Double Coin |
| 455A-50CA | 55 Ton | 22,945 lbs. (+/- 3%) | 102″ | 3 | (12) 235/75R 17.5 Double Coin |
| 455A-53 | 55 Ton | 24,485 lbs. (+/- 3%) | 102″ | 3 | (12) 235/75R 17.5 Double Coin |
Traveling Axle Model 317E
The 317/318 Workhorse
The 317E 35-ton capacity trailer features a one-piece, 4-beam frame designed with low-load and a 29-inch full width, rigid flat approach plate. Landoll’s full tilt trailer gives the operator full control of the trailer and heavy loads. The 317E features a six roller undercarriage with the entire frame lifting up from the fifth wheel. Landoll’s approach plate can be used for additional load deck space and has four tie-down chain slots. The 317E is nicknamed the OLD WORKHORSE because of its’ decades of dependable performance and durability.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 317E-48 | 35 Ton | 17,360 lbs. (+/- 3%) | 102″x37′ | 2 | (8) 235/75Rx17.5 Double Coin |
| 317E-50CA | 35 Ton | 17,940 lbs.(+/- 3%) | 102″x39′ | 2 | (8) 235/75Rx17.5 Double Coin |
| 317E-53 | 35 Ton | 19,485 lbs(+/- 3%). | 102″x42′ | 2 | (8) 235/75Rx17.5 Double Coin |
Traveling Axle Model 318E
The 318E Workhorse
The 318E 50-ton capacity three-axle trailer features a one-piece, four-beam frame designed with low-load and a 29-inch full width, rigid flat approach plate. Landoll’s full tilt trailer gives the operator full control of the trailer and heavy loads. The 318E features a six roller undercarriage with the entire frame lifting up from the fifth wheel. Landoll’s approach plate can be used for additional load deck space and has four tie-down chain slots. The 318E is nicknamed the OLD WORKHORSE because of it’s decades of dependable performance and durability.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 318E-48 | 50 Ton | 20,700 lbs. (+/- 3%) | 102″x37′ | 3 | (12) 235/75R 17.5 Double Coin |
| 318E-50 | 50 Ton | 21,800 lbs (+/- 3%). | 102″x39′ | 3 | (12) 235/75R 17.5 Double Coin |
| 318E-50CA | 50 Ton | 21,800 lbs. (+/- 3%) | 102″x41′ | 3 | (12) 235/75R 17.5 Double Coin |
| 318E-53 | 50 Ton | 22,610 lbs. (+/- 3%) | 102″x42′ | 3 | (12) 235/75R 17.5 Double Coin |

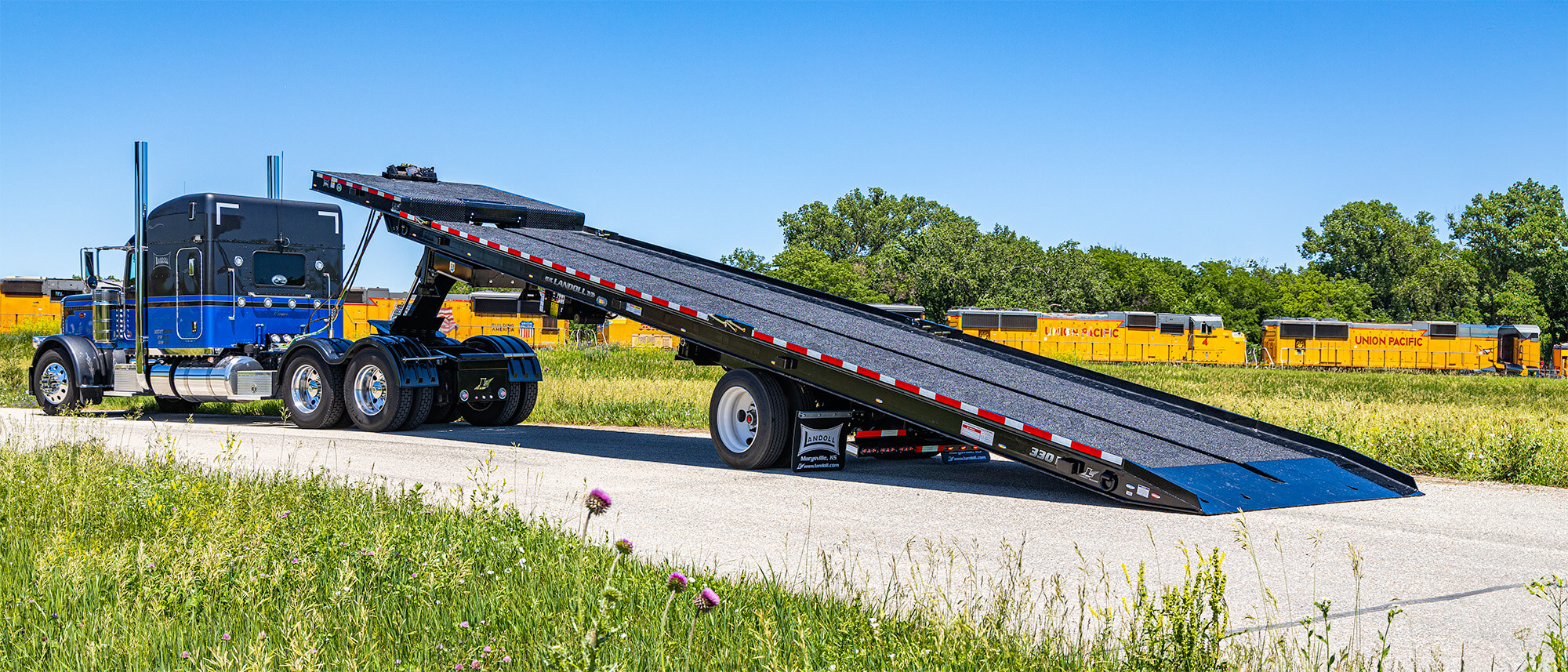

Traveling Axle Model 330D-1
Haul Empty Containers
The Model 330D container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 3/8†skid plate and side rail built in. The full width solid approach plate has four keyhole tiedowns. The 330D is also available in an optional single drop frame to haul high cube containers.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 330D-1-42 | 8 Ton | 12,200 lbs. +/- 3% | 42′ | 1 | (4) 255/70R 22.5 Double Coin |
| 330D-1-48 | 8 Ton | 15,200 lbs. +/- 3% | 48′ | 1 | (4) 255/70R 22.5 Double Coin |
| 330D-1-50 | 8 Ton | Consult Factory | 50′ | 1 | (4) 255/70R 22.5 Double Coin |
Traveling Axle Model 330D-2
Haul Containers and More
For customers that want to haul containers that may have some weight inside, the 330D-2 is the ideal trailer. The tandem axle series has a higher 50,000 lb. GVWR but continues to offer maneuverability and stability with hydraulic control at all times when loading containers. The heavier duty frame and undercarriage are built for many years of rugged service and strong enough to haul other equipment or automotive vehicles.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 330D-2-42 | 8 Ton | 12,200 lbs. +/- 3% | 42′ | 1 | (4) 255/70R 22.5 Double Coin |
| 330D-2-48 | 8 Ton | 15,200 lbs. +/- 3% | 48′ | 1 | (4) 255/70R 22.5 Double Coin |
| 330D-2-50 | 8 Ton | Consult Factory | 50′ | 1 | (4) 255/70R 22.5 Double Coin |
Traveling Axle Model 342A
Hauling 20′ Containers
The Model 342A is truly designed to add flexibility to your transportation fleet. The 342A is a heavy duty short trailer that gives you great maneuverability while being pulled by your current single axle tractor. The fifth wheel king pin, 7-way electrical connection, and a single 15,000 lb air brake axle are all standard equipment. The 23′ lower deck will legally handle up to 24′ containers, and the standard chain drive load system is ideal for handling multiple box transfers. Haul three 8-foot, two 10-foot, or your standard 20-foot boxes.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING | |
|---|---|---|---|---|---|---|
| 342A-32 | 5 Ton | 8,690 lbs. (+/- 3%) | 23′ | 32′ Overall | 1 | (4) 215/74R 17.5 LRH |

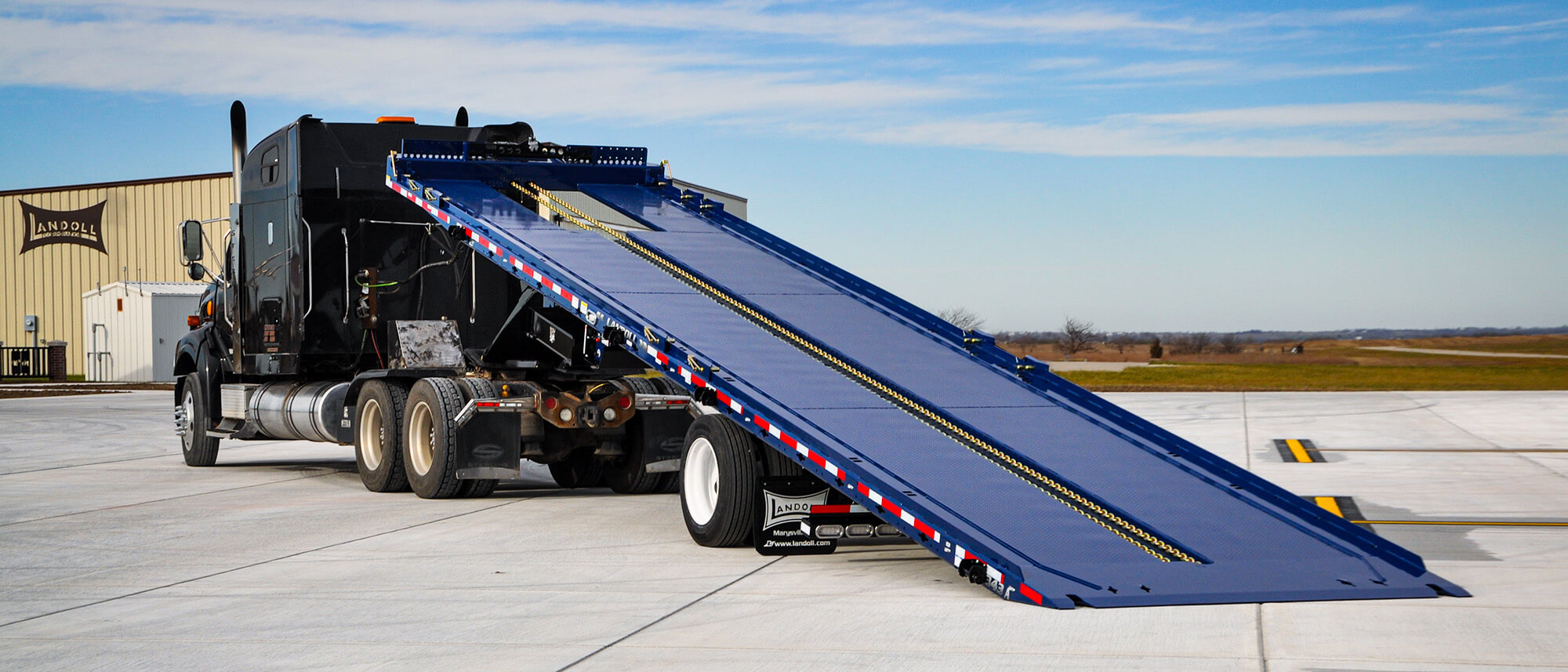

Traveling Axle Model 343A
Hauling 20′ Containers
The Model 343A is truly designed to add flexibility to your transportation fleet. The 343A is a heavy duty short trailer that gives you great maneuverability while being pulled by your current single axle tractor. The fifth wheel king pin, 7-way electrical connection, and a single 15,000 lb air brake axle are all standard equipment. The 23′ lower deck will legally handle up to 24′ containers, and the standard chain drive load system is ideal for handling multiple box transfers. Haul three 8-foot, two 10-foot, or your standard 20-foot boxes.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 343-43 | 5 Ton | xxxx +/- 3% (44′) | 43′ | 1 | (4) 255/70R 22.5 LRH |
| 343-46 | Ton | xxxx +/- 3% (44′) | 46′ | 1 | (4) 255/70R 22.5 LRH |
| 343-50 | 5 Ton | 16,000 lbs.+/- 3% | 50′ | 1 | (4) 255/70R 22.5 LRH |

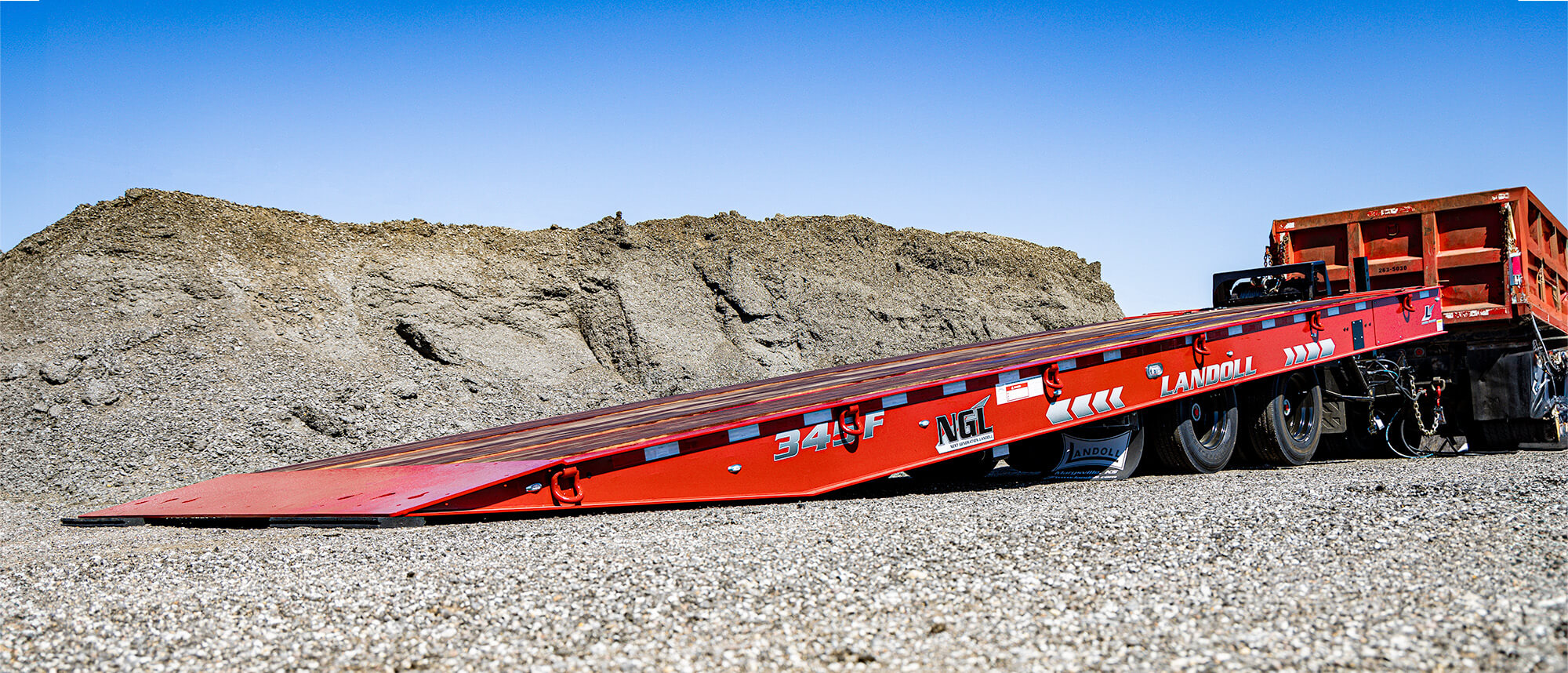

Traveling Axle Model 345F
Hauling 20′ Containers
The Model 345F is truly designed to add flexibility to your transportation fleet. The 345F is a heavy duty short trailer that gives you great maneuverability while being pulled by your current single axle tractor. The fifth wheel king pin, 7-way electrical connection, and a single 15,000 lb air brake axle are all standard equipment. The 23′ lower deck will legally handle up to 24′ containers, and the standard chain drive load system is ideal for handling multiple box transfers. Haul three 8-foot, two 10-foot, or your standard 20-foot boxes.
Specifications
| MODEL | CAPACITY | BASE WEIGHT | DECK | AXLES | TIRES & PLY RATING |
|---|---|---|---|---|---|
| 345F-31 | 25 Ton | 13,260 lbs. (+/- 3%) | 102″ | 2 | (8) 235/75R 17.5 Double Coin Radial Tires |
