Landoll Detachable Trailer Lineup

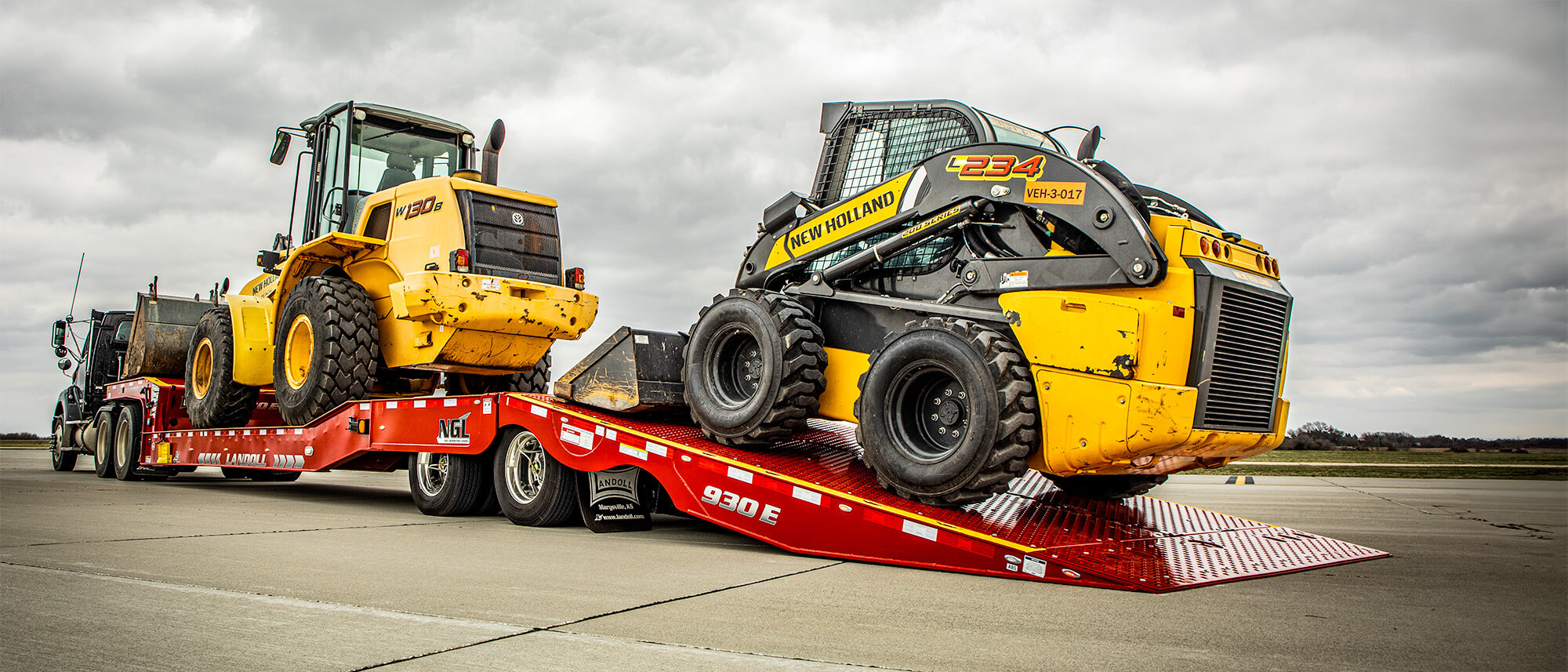

930E
The 930E Traveling Tail is part of the 900 E-Series trailers. The tail is capable of lifting 24,000 lbs up to 53″ dock height. Maximize your loads by utilizing the entire deck and maximize your payload by having the undercarriage five feet behind the main hinge. The longer wheelbase gives you proper weight distribution between tractor and trailer and fully supports the tail.
| Model | Capacity | Base Weight | Length | Tail Length | Deck | Axles |
|---|---|---|---|---|---|---|
| 930E-45-12 | 35 Ton | 17,265 lbs. (+/- 3%) | 45′ | 12′ | 102″ x 35’ 3″ | 2 |
| 930E-48-12 | 35 Ton | 17,660 lbs. (+/- 3%) | 48′ | 12′ | 102″ x 38’ 3″ | 2 |
| 930E-48-15 | 35 Ton | 18,770 lbs. (+/- 3%) | 48′ | 15′ | 102″ x 38’ 3″ | 2 |
| 930E-51-15 | 35 Ton | 19,250 lbs. (+/- 3%) | 51′ | 15′ | 102″ x 41’ 3″ | 2 |
950E
The 950E Traveling Tail Trailer has 50-ton capacity and three 25,000 lbs axles. It offers tail lengths of 12′ and 15′, and overall lengths of 45′, 48′ and 51′. It includes the same rugged four beam construction and other outstanding features of the 900 E-Series – standard powder coat paint, stable rigid dock arm, 24,000 lbs tail-lifting capacity and a centralized grease system. Landoll is the only trailer manufacturer to offer powder coat paint on large trailer frames.
| Model | Capacity | Base Weight | Length | Tail Length | Deck | Axles |
|---|---|---|---|---|---|---|
| 950E-45-12 | 50 Ton | Consult Factory | 45′ | 12′ | 102″ x 35’ 3″ | 3 |
| 950E-48-12 | 50 Ton | 20,695 lbs. (+/- 3%) | 48′ | 12′ | 102″ x 38’ 3″ | 3 |
| 950E-48-15 | 50 Ton | Consult Factory | 48′ | 15′ | 102″ x 38’ 3″ | 3 |
| 950E-50-12 | 50 Ton | Consult Factory | 50′ | 12′ | 102″ x 40’ 3″ | 3 |
| 950E-52-14 | 50 Ton | Consult Factory | 52′ | 14′ | 102″ x 40’ 3″ | 3 |
| 950E-48-15 | 50 Ton | Consult Factory | 48′ | 15′ | 102″ x 41’ 3″ | 3 |
| 950E-51-15 | 50 Ton | 21,750 lbs. (+/- 3%) | 51′ | 15′ | 102′ x 42’ 3″ | 3 |
| 950E-53-15 | 50 Ton | Consult Factory | 53′ | 15′ | 102″ x 43’ 3″ | 3 |
