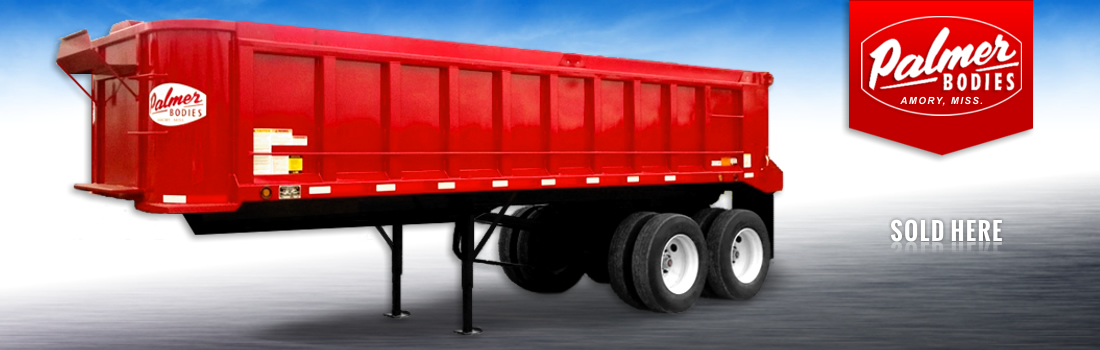

Palmer Trailers

TA-24H

SPECIFICATIONS

Capacity

22 waters level to 25 maximum cubic yards


Inside Width

88 inches (94 ½ inches O.D.)


Inside Length

24 feet at the floor

Front End

48 inches – 10 gauge radius design construction with driver’s side access steps

Hoist Box

10 gauge construction – 50 inches high


Cylinder

Commercial Single Acting Telescopic with 8 inch diameter first moving stage, 4 stages, and 180 inch stroke

Side Boards

6 inch wood bolted in steel pockets


Brakes

16 – ½ x 7 air actuated with MGM 3030 brake chambers, HALDEX 6” self -adjusting automatic brake adjusters and PLC Select 2 sensor/ 1 modulator full function antilock brake system (2s/1m FFABS)

Wheels

24.5” x 8.25” 10 hole hub-piloted steel disc type


Tires

11R 24.5 G-14 ply rated GENERAL ST250 Radials per availability or equal, dual mounted – 8 total

Lights

12 volt DC, 7-way connector, SEALCO wiring harness, sealed lamps, and conspicuity taping – per FMVSS 108

Sidewalls

42 inches – 10 gauge construction with boxed up rail, sloped bottom rail and posts set on 24 inch centers

Tailgate

48 inches – 10 gauge construction, 3 panel design with spreader chains and brackets

Tailgate Slope

standard 6 inch forward

Tailgate Hinge

1 inch plate with 1 ¼ inch diameter pins – standard top swing design

Flooring

10 gauge construction with 45 degree taper at the sidewalls

Crossmembers

4 inch channel set on 12 inch centers


Chassis

Hybrid Design (a.k.a. Quarter Frame, Hy-Spill or Semi- Frameless)

Suspension

Hutchens H900 50,000 lb. capacity, 7 leaf, two spring single point type


Axles

Hendrickson 25,000 lb. capacity, 5” round x 5/8” wall x 72” track

Other Equipment

Front End Mounted 24” x 14” Mud Flaps
Front End Mounted Tarp Basket
Tarp Tie-Down bars on sides and tailgate
Spare Tire Rack
